Bar-o-Matic

[GGJaguar]

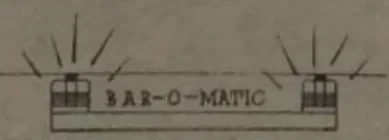

From the diagram it looks like Burns used one long magnet between the pickups.



[steveintampa]

SD has one. Tried it, but pulled it out for a Harmonic Design model.

Seymour Duncan STK-S2 Hot Single-Coil Pickup Black Neck | Guitar Center

Shop for the Seymour Duncan STK-S2 Hot Single-Coil Pickup in Black Neck and receive free shipping and guaranteed lowest price.

www.guitarcenter.com

This one is 6 bars diagonally.

Lawing Musical Products — Zexcoil® Guitar Pickups Design

Zexcoil pickups utilize an individual coil for each string. The coils are positioned to provide both discrete sensing and a consistent pickup pattern. This yields superior articulation and a smoothness of response that almost no other pickup has. Oh yeah, and they're noiseless.

lawingmusicalproducts.com

I have this one in the neck position of a tele with a 3 way switch. It is awesome, but not a "classic rock sound"

Lawing Musical Products — Zexcoil® TriBucker™

lawingmusicalproducts.com

Not exactly sure what is under the hood, but it does some cool things



[HeyMikey]

Huh, came here expecting something completely different.



[SFIV1967]

From the diagram it looks like Burns used one long magnet between the pickups.

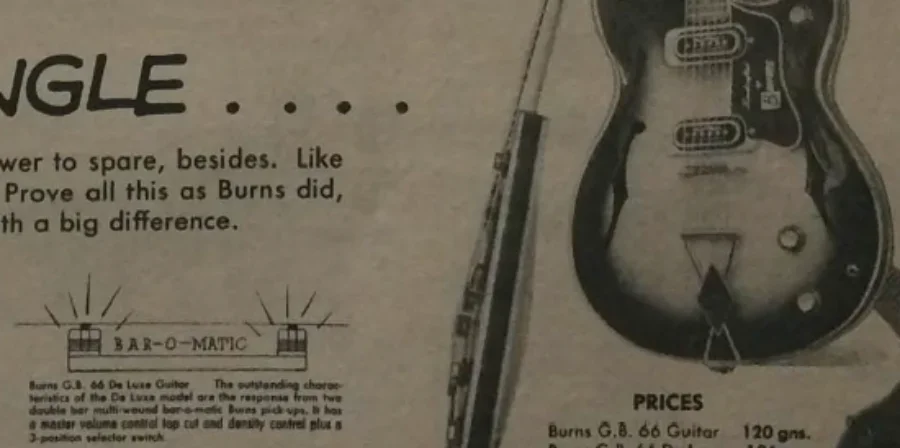

Interesting that the spelling on the pickups is "BAR-O-MATIK" with "K" whereas the ad shows with "C".

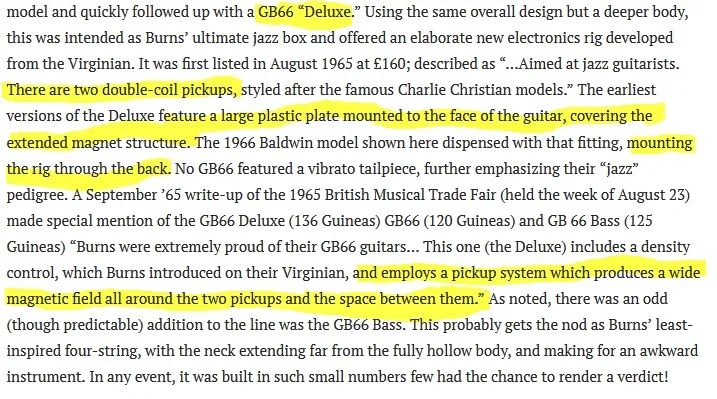

Source: https://www.vintageguitar.com/29933/beat-portraits-burns-volume-7/

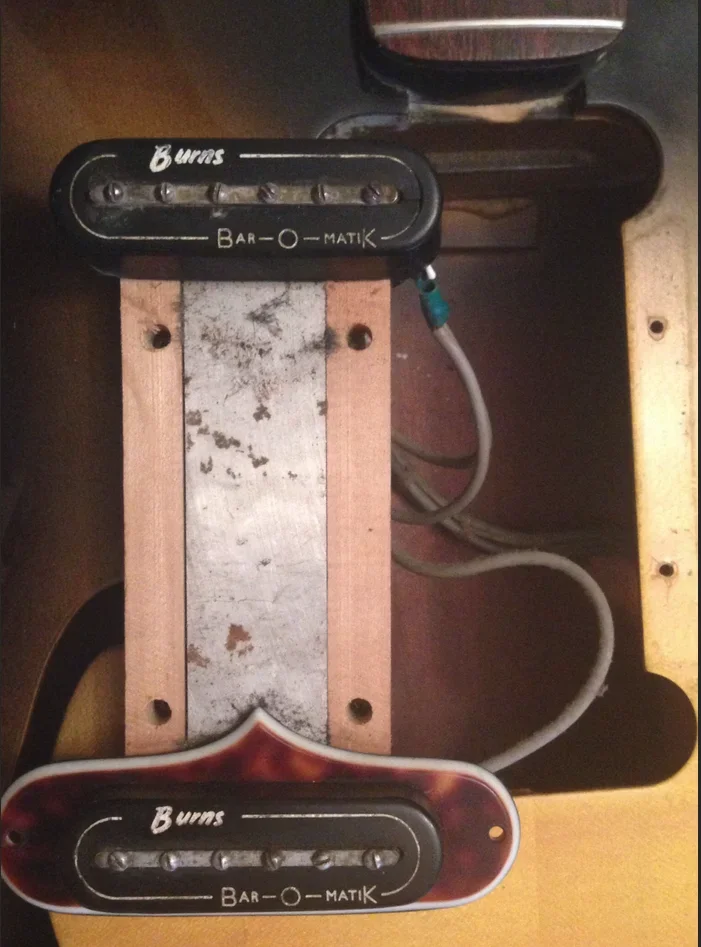

Crazy mounting!





Ralf



[chazmo]

Interesting that the spelling on the pickups is "BAR-O-MATIK" with "K" whereas the ad shows with "C".

Source: https://www.vintageguitar.com/29933/beat-portraits-burns-volume-7/





Crazy mounting!





Ralf

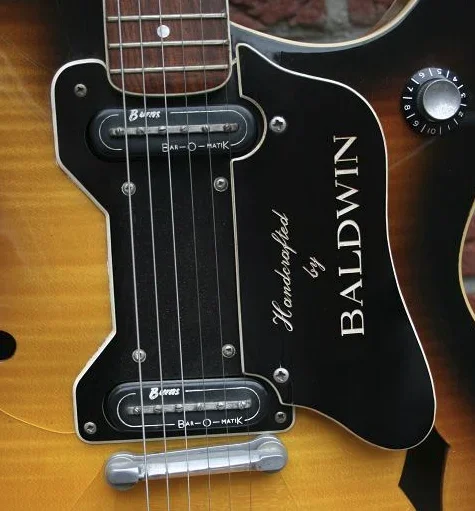

I had no idea that Baldwin (I assume that we’re talking about the piano manufacturer; it looks like their logo) had anything to do with guitars. How neat!



[fronobulax]

I had no idea that Baldwin (I assume that we’re talking about the piano manufacturer; it looks like their logo) had anything to do with guitars. How neat!

From https://www.baldwinpiano.com/history.html

In late 2001 Baldwin became part of the Gibson Guitar Company (now Gibson Brands), another historic American musical instrument manufacturer.

And from https://en.wikipedia.org/wiki/Baldwin_Piano_Company

The company next attempted to capitalize on the growth of pop music. After an unsuccessful bid to buy Fender Musical Instruments Corporation, Baldwin bought guitar manufacturer Burns of London in 1965 for $380,000, and began selling guitars through the company's piano retail outlets. Baldwin engineer Robert C. Scherer developed the Prismatone pickup for nylon-string guitars.[6] But the Baldwin stores failed to interest many guitar buyers, and sales proved disappointing.[7] In 1967, Baldwin bought Gretsch guitars, which had its own experienced guitar sales force and a distribution network of authorized retail outlets. However, Fender and Gibson continued to dominate, and sales did not reach expected levels. The Gretsch guitar operation would be sold back to the Gretsch family in 1989.

Not trying to be that "let me Google that for ya" snark but I was somewhat surprised to hear about Baldwin, Gibson, FMIC and Gretsch. I knew about Baldwin pianos much before I knew who made guitars



[chazmo]

but I was somewhat surprised to hear about Baldwin, Gibson, FMIC and Gretsch. I knew about Baldwin pianos much before I knew who made guitars

Wow, yeah, Jamie. I honestly never knew/heard that Baldwin was in on all that churn. My dad bequeathed a ~1960 Baldwin baby grand to me which was his pride and joy. Great pianos is all I ever knew about Baldwin!



[RBSinTo]

Long story short:
Willie Nelson was playing a Baldwin 800 EC (Electric Classic) nylon-string guitar which was damaged beyond repair, and replaced by the Martin N-20 that became known as Trigger.
However, Nelson, liking the sound it produced, had the pick-up from the Baldwin installed in the Martin.



[steveintampa]

There are some interesting ones on Reverb

https://reverb.com/b/burns-baldwin--80
